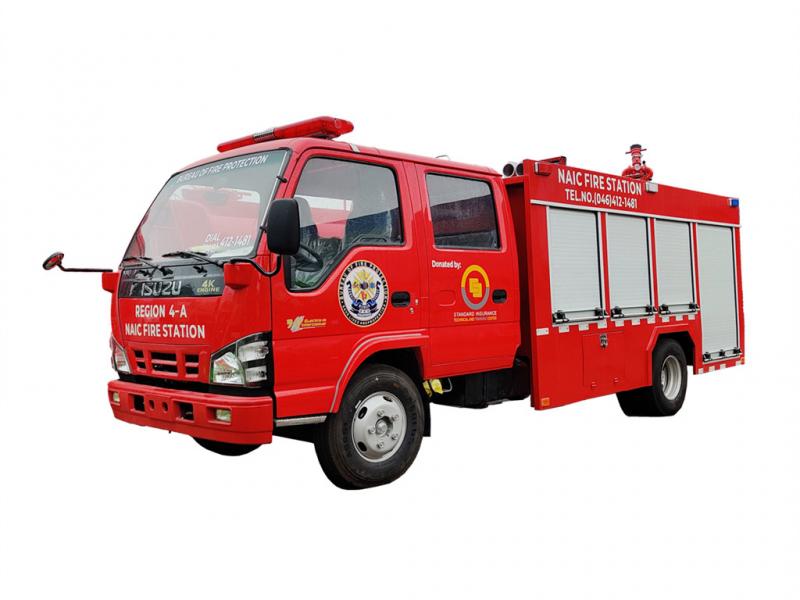

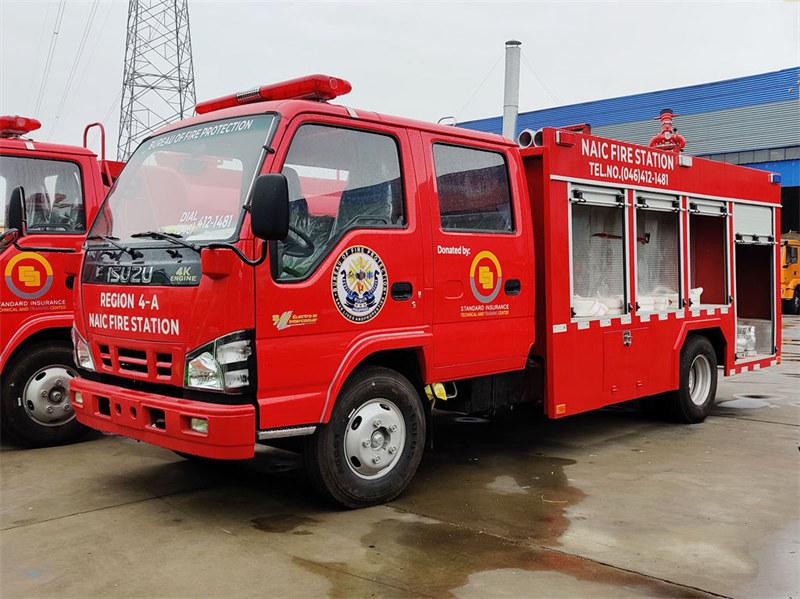

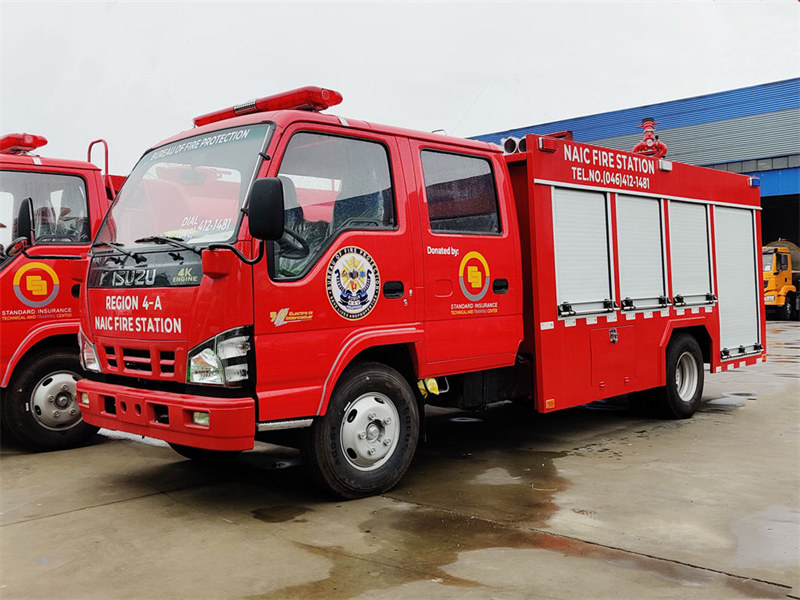

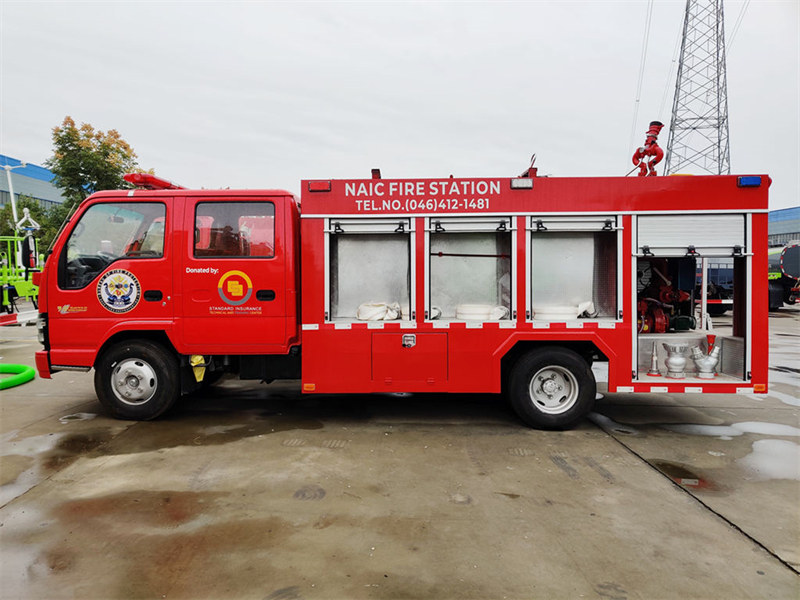

The ISUZU 600P light-duty water tank fire truck is a compact firefighting vehicle developed on the ISUZU NKR chassis, measuring 6220×1960×2840mm overall and powered by a 120HP engine. Equipped with a 3000L stainless steel water tank, a CB10/30 fire pump, and a PS8/20W fire monitor, its double-row cab accommodates 5 firefighters. Featuring 7.00R16 tires and a WEVB auxiliary braking system, it combines mobility with safety, making it ideal for initial fire suppression in urban communities, industrial parks, and rural areas—an optimal choice for grassroots firefighting units.
Truck Model:
PT5070GXFSGTanker Structure:
Stainless steelWork capacity :
3000 litersWheelbase:
3360 mmAxle drive:
4×2, left hand driveEngine Power:
120 HPEngine Model:
4KH1CN6LBFire Pump:
CB10/30Fire Monitor:
PS8/20WRemark:

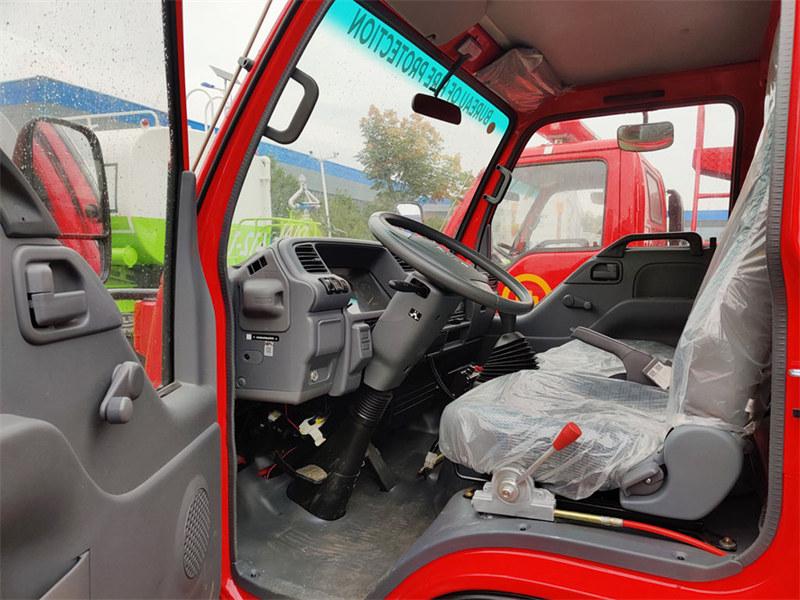

Foam tank is optionalThe ISUZU 600P light-duty tanker fire truck is a compact firefighting apparatus built on the ISUZU NKR light commercial vehicle chassis, with overall dimensions of 6220×1960×2840mm and a gross weight of 7300kg. The model adopts an original double-row cab design, accommodating 5 firefighters (2 front + 3 rear), while its flat-head structure ensures excellent visibility, particularly suited for fire operations in narrow urban streets. Powered by a 4KH1CB6LB diesel engine compliant with Euro 6 emission standards, its 120HP output paired with a 5-speed manual transmission guarantees rapid response to emergency scenes.

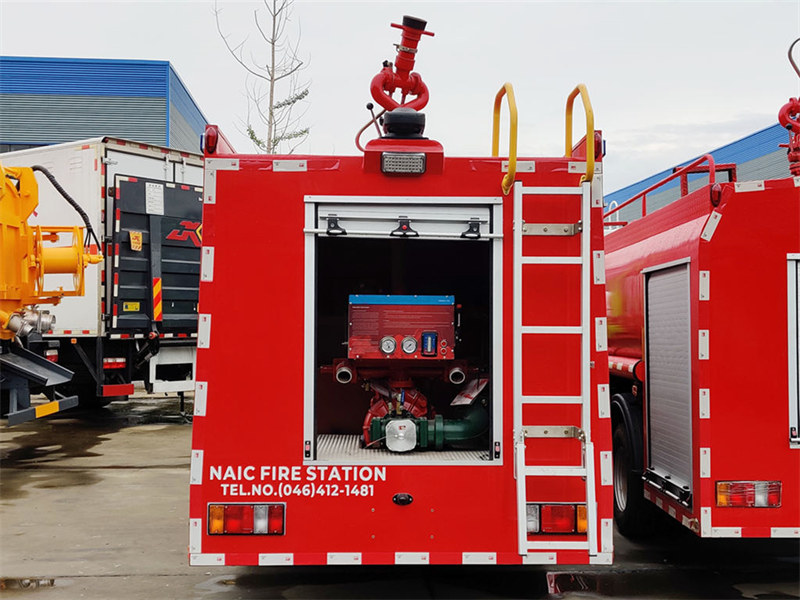

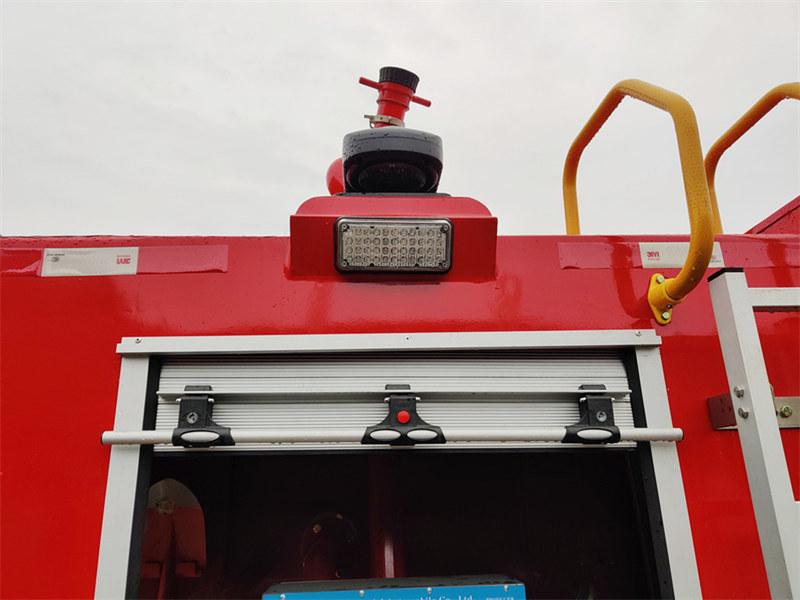

The centerpiece of this ISUZU small fire tender truck is its 3000L stainless steel water tank. The tank features a quick-opening/closing manhole cover, overflow device, liquid level gauge, and manually controlled drain outlet for easy maintenance and rapid water replenishment. The CB10/30 normal-pressure fire pump delivers a rated flow of 30L/s at 1.0MPa working pressure, with a maximum suction depth of 7m, ensuring stable operation across diverse water sources. The PS8/20W fire monitor achieves a range exceeding 50m, with 360° horizontal rotation and -35° to +70° elevation angles, providing firefighters with flexible fire control capabilities.

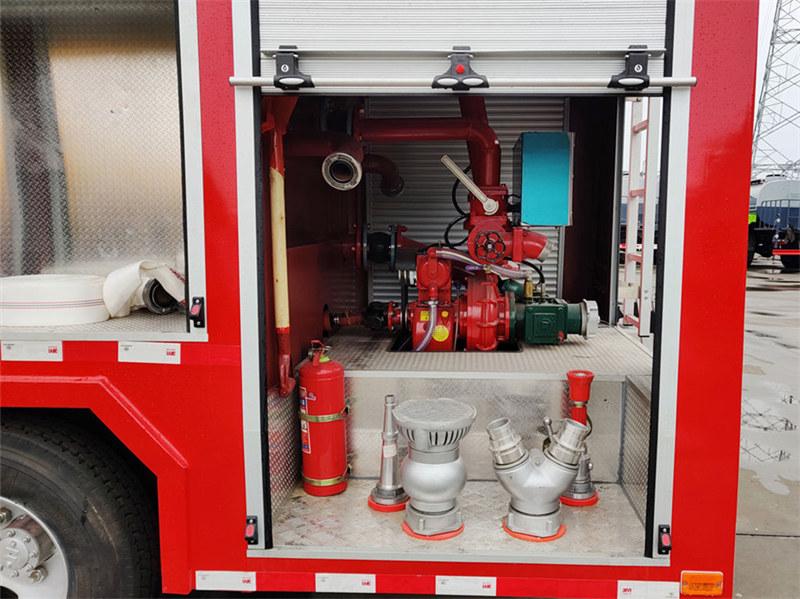

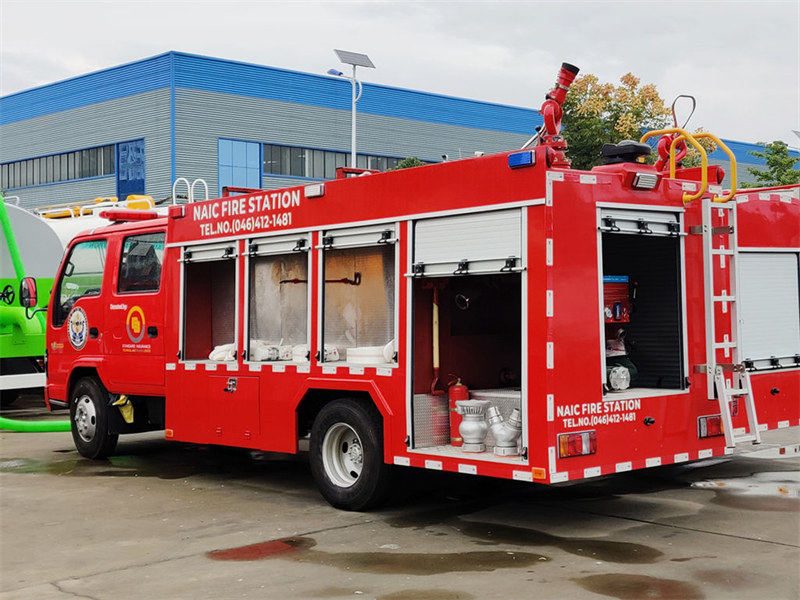

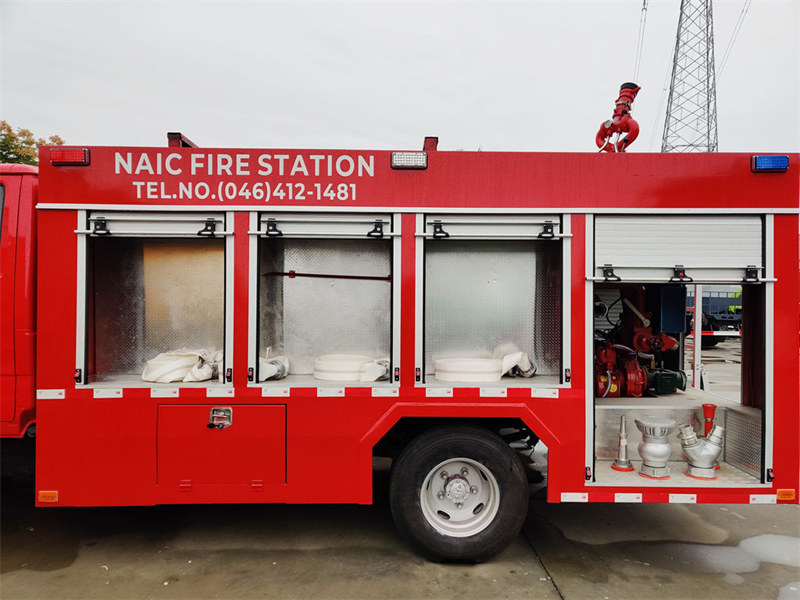

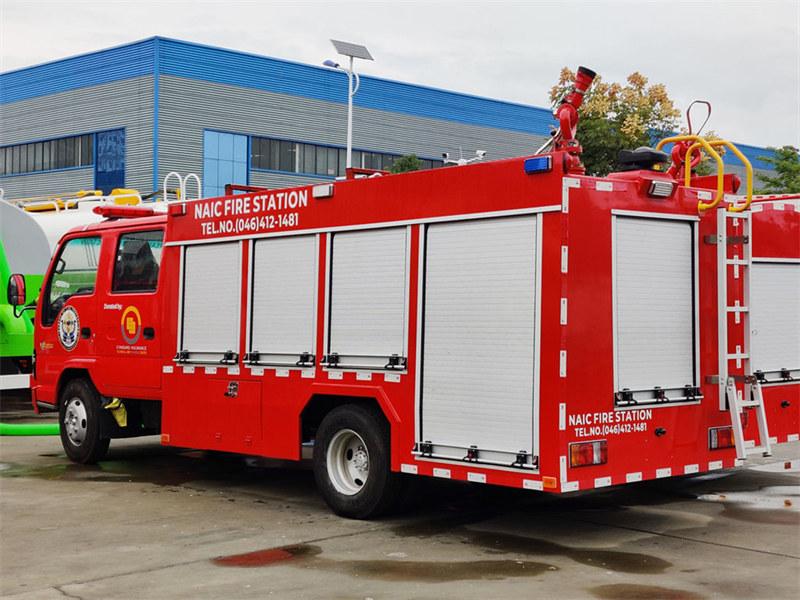

The ISUZU 600P pumper fire truck's equipment compartments utilize high-quality aluminum roll-up doors, balancing lightweight construction with durability. Professional configurations include a sandwich PTO, pipeline system, equipment cabin, and pump room, while flip-down steps and lighting systems enhance nighttime operational convenience. The well-organized layout ensures easy access to all firefighting gear, meeting national standards for light-duty fire truck equipment.
Product Specifications
Vehicle parameters |
||
Overall dimension |
6220*1960*2840(mm) |
|
GVW |
7300kg |
|
Curb weight |
4200kg |
|
Chassis brand |
ISUZU |
|
Traction type |
4*2, left hand drive |
|
Chassis parameters |
||
Chassis model |
ISUZU 600P |
|
Cab |
Structure: flat-head, double-row seat four-door passenger compartment. |
|
Wheelbase |
3360mm |
|
Tire specification |
7.00R16 |
|
Tire quantity |
6+1 |
|
Engine |
Engine model |
4KH1CB6LB |
Emission standard |
Euro 6 |
|
Displacement |
2999ml |
|
Output power |
88 kW |
|
Horsepower |
120 hp |
|
Max. torque |
290 N.m |
|
Gear box |
Model |
ISUZU - MSB |
Number of gears |
5 forward gears& 1 reverse |
|
Brake system |
Type |
Drum |
Service brake |
Dual-circuit compressed air brake |
|
Park brake |
Power spring brake acting on rear wheel |
|
Auxiliary brake |
WEVB |
|
Axle |
Front |
2.5T |
Rear |
4.8T |
|
Suspension |
Front |
8- Leaf spring with shock absorber |
Rear |
6+5-Leaf spring |
|
Fuel tanker |
Type |
Steel fuel tanker |
Capacity |
100L |
|
Superstructure parameters |
||
Water Tanker |
Capacity |
3000 liters |
Material |
Stainless steel |
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
Fire pump |
Model |
CB10/30, normal pressure pump |
Flow |
30L/S |
|
Pressure |
1.0Mpa |
|
Suction depth |
7m |
|
Fire monitor |
Model |
PS8/20W |
Flow |
20L/S |
|
Pressure |
0.8Mpa |
|
Range |
≥50m |
|
Rotation angle |
Horizontal 360° |
|
Other configuration |
Equipped with sandwich PTO, pipeline system; |
Features of the ISUZU NKR Fire Truck's Fire Monitor:
• Comprehensive functionality
• Simple and innovative structure
• Stable performance with easy maintenance
• Low inlet pressure requirement
• Dual spray patterns (fog/jet)
• Lightweight design
• Equipped with automatic drain valve
• Horizontal and elevation locking mechanisms
• Material: Precision-cast aluminum alloy
Product Details
